About Product

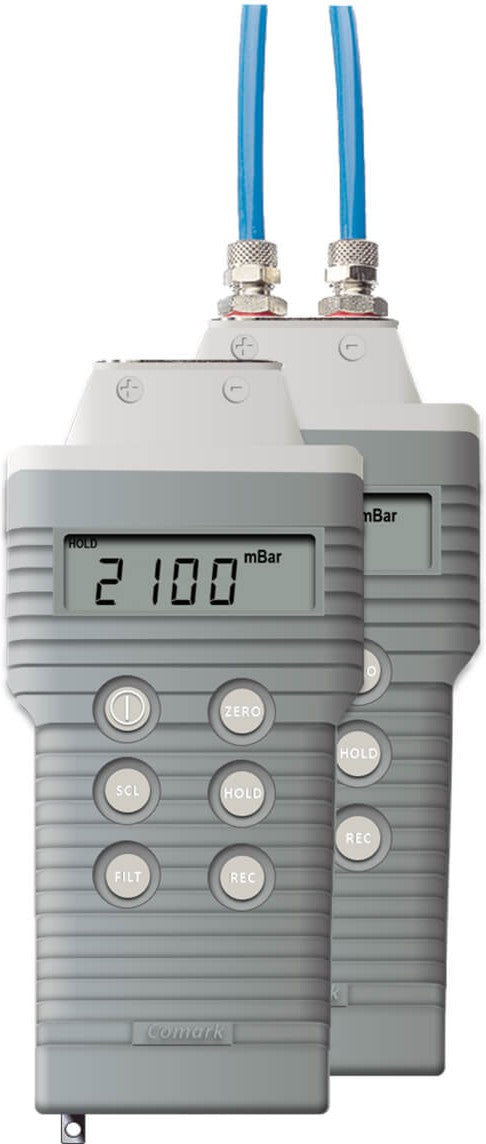

The Comark C9557 Dry Use Pressure Meter 0-to-±7000mbar / Dry Use Manometer 0-to-±7000mbar combines high accuracy with speed of response as well as is a durable, heavy-duty solution for transporting packages, supplies, and equipment. Ideal for use in inputs for positive/negative gauge or differential pressure measurement.
Key highlights:
- ULTRA-TOUGH HOUSING: IP67 rated ultra-tough case with optional protective rubber boot for demanding environments
- TWIN INPUTS: for gauge and differential pressure measurements using 1/8″ BSP female connectors
- AUTO SWITCH-OFF FEATURE: providing you with peace of mind usage, allowing you to focus on the task at hand
- STRONG BATTERY LIFE: up to 125 hrs of continuous use from a single 9V PP3 6F22 battery (supplied)
- DISPLAYED WARNINGS: on-screen alerting of maximum over/under pressure and low-battery and over 9999 readings
- TUBING & CONNECTORS: supplied with 4 x 1/8″ BSP Nylon Washers, 1.4m Polyurethane Tube SP Blue and 2 x Male Stud Coupling c/w Washer
- MULTI-FUNCTION: offers functions to show maximum pressure, minimum pressure, reading hold and averaged reading
- Pressure Measurement Range: 0-to-±7000 mBar
- Twin Inputs for Gauge or Differential Pressure
- Pressure units: PSI, mbar, inH 2 O, inHg, mmHg, torr, kPa, cmH 2 O, Kgcm -2
- Warranty: 2 Years
The Comark C9557 Dry Use Pressure Meter 0-to-±7000mbar / Dry Use Manometer 0-to-±7000mbar combines high accuracy with speed of response as well as is a durable, heavy-duty solution for transporting packages, supplies, and equipment. Ideal for use in inputs for positive/negative gauge or differential pressure measurement.
Key highlights:
- ULTRA-TOUGH HOUSING: IP67 rated ultra-tough case with optional protective rubber boot for demanding environments
- TWIN INPUTS: for gauge and differential pressure measurements using 1/8″ BSP female connectors
- AUTO SWITCH-OFF FEATURE: providing you with peace of mind usage, allowing you to focus on the task at hand
- STRONG BATTERY LIFE: up to 125 hrs of continuous use from a single 9V PP3 6F22 battery (supplied)
- DISPLAYED WARNINGS: on-screen alerting of maximum over/under pressure and low-battery and over 9999 readings
- TUBING & CONNECTORS: supplied with 4 x 1/8″ BSP Nylon Washers, 1.4m Polyurethane Tube SP Blue and 2 x Male Stud Coupling c/w Washer
- MULTI-FUNCTION: offers functions to show maximum pressure, minimum pressure, reading hold and averaged reading
- Pressure Measurement Range: 0-to-±7000 mBar
- Twin Inputs for Gauge or Differential Pressure
- Pressure units: PSI, mbar, inH 2 O, inHg, mmHg, torr, kPa, cmH 2 O, Kgcm -2
- Warranty: 2 Years
Specifications
| Product Weight | 0.73 lb |
| Pressure Measurement Range | \t0 to ±7000 mBar |
| Resolution | 0.1mBar |
| Accuracy | ±0.2% of full scale (FS) at +23°C |
| Mean Temperature Coefficient of Reading | <0.1% per °C |
| Operating Temperature Range | 0 to 50°C |
| Humidity Range | 10 to 90% RH non-condensing |
| Environmental Protection | IP67, BS:EN60529, IEC529 |
| Battery | *9V PP3 6F22 — MN1604 UCAR9V |
| Battery Capacity | 125 hours |
| Connections | 1/8 inch BSP female |
| Model | C9557 |
| Item Condition | New |
| Length | 175 mm |
| Width | 82 mm |
| Depth | 32 mm |
Model Number: CS-CELC-C9557
Comark - 0-100 PSI Dry Use Pressure Meter - C9557 (Pre-Order Now, ETA 3-4 Weeks)
Couldn't load pickup availability
| Product Weight | 0.73 lb |
| Pressure Measurement Range | \t0 to ±7000 mBar |
| Resolution | 0.1mBar |
| Accuracy | ±0.2% of full scale (FS) at +23°C |
| Mean Temperature Coefficient of Reading | <0.1% per °C |
| Operating Temperature Range | 0 to 50°C |
| Humidity Range | 10 to 90% RH non-condensing |
| Environmental Protection | IP67, BS:EN60529, IEC529 |
| Battery | *9V PP3 6F22 — MN1604 UCAR9V |
| Battery Capacity | 125 hours |
| Connections | 1/8 inch BSP female |
| Model | C9557 |
| Item Condition | New |
| Length | 175 mm |
| Width | 82 mm |
| Depth | 32 mm |
