Introducing the GEMM Blast Chiller for Trolleys, a is a durable, heavy-duty solution for transporting packages, supplies, and equipment. Ideal for use in commercial and industrial settings.
Key highlights:
- Working cycle: by time or probe
- Core probe (“L” handle) included for core temperature control
- Automatic core probe detection: switch to probe mode
- Internal LED light
- Immediate fan interruption upon door opening
- Heated frame and threshold, three chamber magnetic seal, compensation valve
- Internal stainless steel AISI 304 finish and rounded corners with R=15 mm
- Insulating panels (100 mm thick): injected with CFC and HCFC-free polyurethane foam of 42 Kg/m3 between two AISI 304 stainless steel sheets, with thermal transmittance of U=0.23 W/m2K
- Insulated (90 mm) and reinforced floor in 15/1O mm AISI 304 stainless steel
- Suitable for recessed floor installation
- Standard ramp included (20.5-inch )
- Hard/soft chilling and blast freezing
- Customize the parameters of each cycle: time, ventilation speed, temperature,
- Create your own recipe book: save up to 100 different chilling/freezing cycles
- Special preset cycles: pre-cooling, ice cream hardening, room drying, fish sanitation
- Manual and automatic defrost
- Customized blast chilling cycle: create 4 distinct phases according to time, room temperature, product temperature and ventilation
- Automatic storage function and option to save the recipe at the end of each new cycle
- Preset recipes included
- Continuous diagnostic and alarm display
- No. 1 vertical evaporator
- high thermal exchange coefficient
- Multi-circuit
- Anticorrosion cataphoresis treatment
- Air conveyors facilitate high performance without dehydrating products
- Evaporators equipped with no. Air range for each evaporator: 10,500 m3/h 3 Air speed: 0.7-7 m/s, variable through the control board
- Automatic defrost outside working cycles only
- Accessible evaporator wall to facilitate cleaning and maintenance
- Stainless steel bumper to maintain trolley position during use
Description
Introducing the GEMM Blast Chiller for Trolleys, a is a durable, heavy-duty solution for transporting packages, supplies, and equipment. Ideal for use in commercial and industrial settings.
Key highlights:
- Working cycle: by time or probe
- Core probe (“L” handle) included for core temperature control
- Automatic core probe detection: switch to probe mode
- Internal LED light
- Immediate fan interruption upon door opening
- Heated frame and threshold, three chamber magnetic seal, compensation valve
- Internal stainless steel AISI 304 finish and rounded corners with R=15 mm
- Insulating panels (100 mm thick): injected with CFC and HCFC-free polyurethane foam of 42 Kg/m3 between two AISI 304 stainless steel sheets, with thermal transmittance of U=0.23 W/m2K
- Insulated (90 mm) and reinforced floor in 15/1O mm AISI 304 stainless steel
- Suitable for recessed floor installation
- Standard ramp included (20.5-inch )
- Hard/soft chilling and blast freezing
- Customize the parameters of each cycle: time, ventilation speed, temperature,
- Create your own recipe book: save up to 100 different chilling/freezing cycles
- Special preset cycles: pre-cooling, ice cream hardening, room drying, fish sanitation
- Manual and automatic defrost
- Customized blast chilling cycle: create 4 distinct phases according to time, room temperature, product temperature and ventilation
- Automatic storage function and option to save the recipe at the end of each new cycle
- Preset recipes included
- Continuous diagnostic and alarm display
- No. 1 vertical evaporator
- high thermal exchange coefficient
- Multi-circuit
- Anticorrosion cataphoresis treatment
- Air conveyors facilitate high performance without dehydrating products
- Evaporators equipped with no. Air range for each evaporator: 10,500 m3/h 3 Air speed: 0.7-7 m/s, variable through the control board
- Automatic defrost outside working cycles only
- Accessible evaporator wall to facilitate cleaning and maintenance
- Stainless steel bumper to maintain trolley position during use
Specifications
| Weight | 1052 lb |
| Ambient Temperature | 30°C (86°F) |
| Climatic Class | 5 |
| Defrosting System | Automatic with Hot Gas |
| Freezing Capacity | 197°F to 0°F = 165 lb |
| Chilling Capacity | 197°F to 37 °F = 209.5 lb |
| Ramp Pitch | 7° |
| Total Volume Capacity | 1147 Liters |
| Input Voltage | 230V 3PH (60 Hz), 5285W, 16A |
| Chilling | Hard/Soft |
| Door | With Left Hinges |
| Total Length | 35 inch |
| Total Width | 30.75 inch |
| Total Height | 83.25 inch |
| Chamber Length | 30 inch |
| Chamber Width | 25.5 inch |
| Chamber Height | 56.25 inch |
| Container Length | 14.2 inch |
| Container Width | 6.3 inch |
| Container Height | 7.4 inch |
GEMM
by
GEMM
Model Number: CS-EUR-BCC 4008

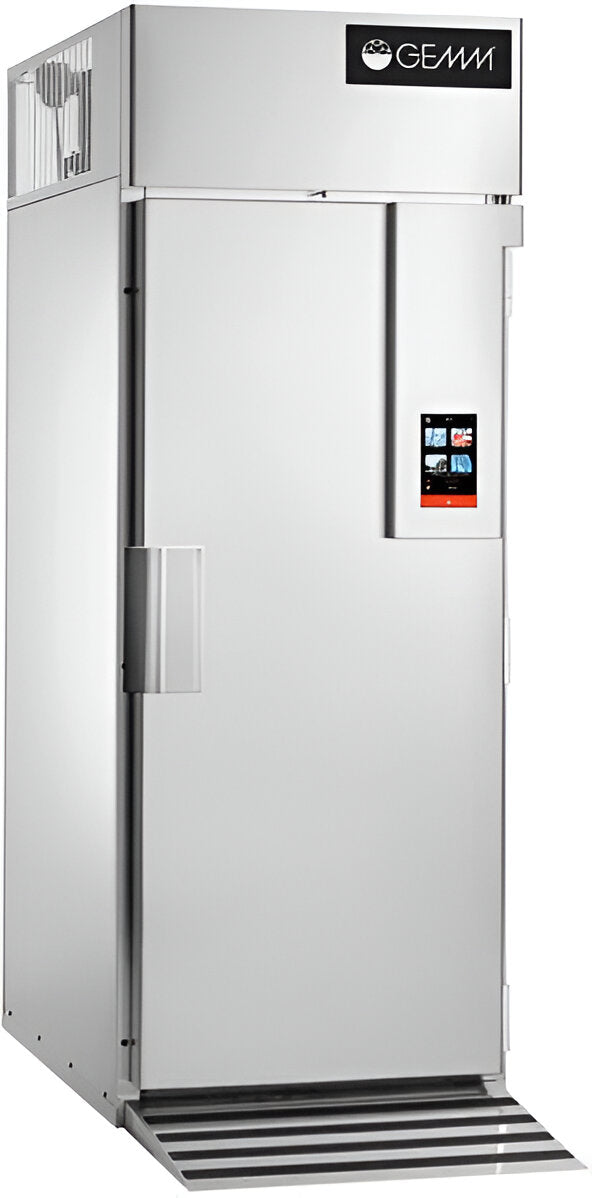

GEMM - 1147 L, 230V Blast Chiller For Trolleys - BCC 4008
