About Product
The Royal 24" Delux Stainless Steel Gas Range with a 20" Wide Oven is a durable, heavy-duty solution for transporting packages, supplies, and equipment. Designed for demanding environments, it has a chrome finish for added durability and corrosion resistance.
Key highlights:
- Fully welded frame with lifetime warranty
- All stainless steel burner box
- 1,200°F mineral wool insulation
- Stainless steel drip tray/grease can
- Accommodates 18-inch x 26-inch full sheet pan
- Stainless steel front, sides, valve cover and kick plate including backguard and high shelf
- Stainless Steel oven “U” burner rated at 27,000 BTU/hr
- Oven pilot with 100% safety shut down
- Two piece, heavy duty lift off cast iron burner heads rated at 30,000 BTU/hr each
- 12-inch x 12-inch cast iron top grates with pilot shield
- Five position heavy gauge chrome rack guides
- One chrome rack per oven
- Five surface porcelain oven interior
- Stainless steel tubing for burners and pilots
- 3/4-inch thick polished steel griddle plate
- 6-inch high S/S stub back in lieu of high shelf
- 1-inch thick griddle plate
- Griddle on right (Left hand side standard)
- Chrome griddle plate
- Grooved griddle
- One thermostat per burner (GT Griddle Series)
- 12-inch hot top section - add suffix “-HT”
- 9-inch deep S/S landing ledge, with or without sauce pan cutouts
- Additional oven racks
- Open storage cabinet base - add suffix “-XB”
- Cabinet doors
- Intermediate shelf
- Wok burner head with 10-inch diameter S/S ring
- 48-inch quick disconnect and restraining cable
- 5-inch swivel casters (set of four - 2 locking)
The Royal 24" Delux Stainless Steel Gas Range with a 20" Wide Oven is a durable, heavy-duty solution for transporting packages, supplies, and equipment. Designed for demanding environments, it has a chrome finish for added durability and corrosion resistance.
Key highlights:
- Fully welded frame with lifetime warranty
- All stainless steel burner box
- 1,200°F mineral wool insulation
- Stainless steel drip tray/grease can
- Accommodates 18-inch x 26-inch full sheet pan
- Stainless steel front, sides, valve cover and kick plate including backguard and high shelf
- Stainless Steel oven “U” burner rated at 27,000 BTU/hr
- Oven pilot with 100% safety shut down
- Two piece, heavy duty lift off cast iron burner heads rated at 30,000 BTU/hr each
- 12-inch x 12-inch cast iron top grates with pilot shield
- Five position heavy gauge chrome rack guides
- One chrome rack per oven
- Five surface porcelain oven interior
- Stainless steel tubing for burners and pilots
- 3/4-inch thick polished steel griddle plate
- 6-inch high S/S stub back in lieu of high shelf
- 1-inch thick griddle plate
- Griddle on right (Left hand side standard)
- Chrome griddle plate
- Grooved griddle
- One thermostat per burner (GT Griddle Series)
- 12-inch hot top section - add suffix “-HT”
- 9-inch deep S/S landing ledge, with or without sauce pan cutouts
- Additional oven racks
- Open storage cabinet base - add suffix “-XB”
- Cabinet doors
- Intermediate shelf
- Wok burner head with 10-inch diameter S/S ring
- 48-inch quick disconnect and restraining cable
- 5-inch swivel casters (set of four - 2 locking)
Specifications
| Weigth | 440 lb |
| Wide Griddle Size | 24 inch |
| Oven Size | 20 inch |
| Mineral Wool Insulation | 1,200°F |
| Accommodates Full Sheet Pan | 18” x 26” |
| Burner Shape | U |
| Top Grates | Cast Iron |
| Top Grates Size | 12” x 12” |
| Position Heavy Gauge Chrome Rack Guides | Five |
| Chrome Rack Per Oven | One |
| Surface Porcelain Oven Interior | Five |
| Thickness Steel Griddle Plate | 0.75 inch |
| GT Griddle Series | Standard With One Thermostat Per Two Burners |
| Gas Connection | 3/4” NPT On The Right Hand |
| Total BTU | 67,000 |
| Gas Pressure (Natural) | 5” W.C. |
| Gas Pressure (Propane) | 10” W.C. |
| Clearances / Combustible / Rear | 4 inch |
| Clearances / Combustible / Sides | 15 inch |
| Model | RDR-G24 |
| Item Condition | New |
| Width | 24 inch |
| Depth | 31.5 inch |
| Height | 56.5 inch |
Model Number: CS-CELC-RDR-G24

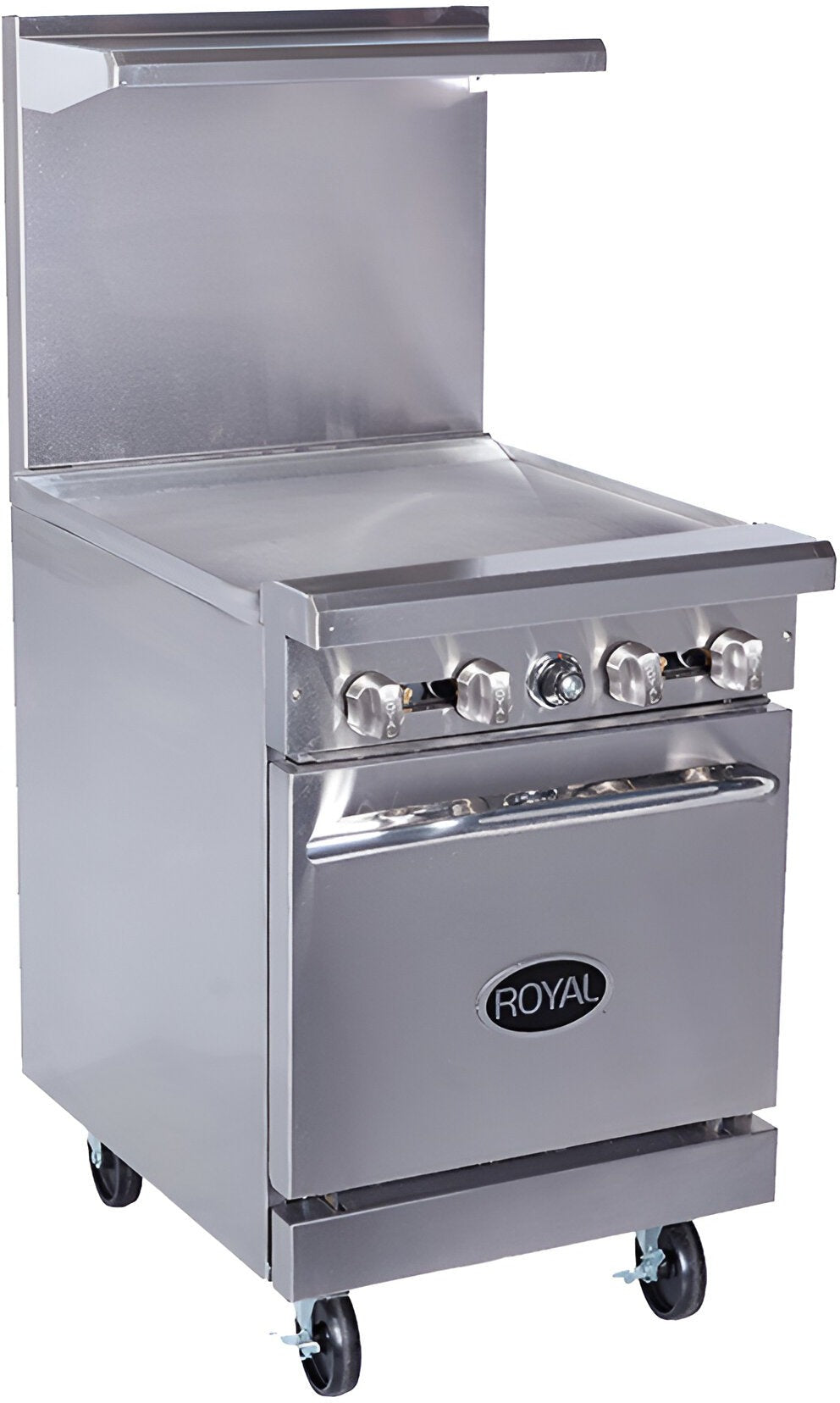

Royal - Delux 24″ Stainless Steel Gas Range with One 20” Wide Oven and 24" Griddle - RDR-G24
