About Product
Description
Introducing your newest as well as hardest-working employee, is a durable, heavy-duty solution for transporting packages, supplies, and equipment.
Key highlights:
- 380- to 415-volt, water-cooled, 3-phase model with two 3-gallon hoppers that dispense two single flavors or combine them into a twin-twist
- Precision-controlled refrigeration system built for quality product consistency from the first order to the last
- Intellitec2® control communicates with the operator through a multiline graphics LCD display using full text instructions
- WiFi-connected ConnectI2U™ equipment monitoring minimizes downtime and allows for more comprehensive reporting and alerts
- Energy Conservation Mode (ECM) protects product from over agitation during slow or nondraw periods
- Compact design with a small footprint saves valuable floor space
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Clear door shows moving product for merchandising appeal
- Refrigerated mix storage cabinet holds two 5 ½-gallon-mix containers, a slide-out mix shelf and two mix pumps
- Clear door shows moving product for merchandising appeal
Description
Introducing your newest as well as hardest-working employee, is a durable, heavy-duty solution for transporting packages, supplies, and equipment.
Key highlights:
- 380- to 415-volt, water-cooled, 3-phase model with two 3-gallon hoppers that dispense two single flavors or combine them into a twin-twist
- Precision-controlled refrigeration system built for quality product consistency from the first order to the last
- Intellitec2® control communicates with the operator through a multiline graphics LCD display using full text instructions
- WiFi-connected ConnectI2U™ equipment monitoring minimizes downtime and allows for more comprehensive reporting and alerts
- Energy Conservation Mode (ECM) protects product from over agitation during slow or nondraw periods
- Compact design with a small footprint saves valuable floor space
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Clear door shows moving product for merchandising appeal
- Refrigerated mix storage cabinet holds two 5 ½-gallon-mix containers, a slide-out mix shelf and two mix pumps
- Clear door shows moving product for merchandising appeal
Specifications
| Weight | 400 Ib |
| Frequency (Hz) | 50 |
| Phase | 3 |
| Plug | Plug not included |
| Plug Connection | Yes |
| Running Amps | 12 |
| Voltage | 380-415 |
| Ouput Capacity per Hour Running Both Sides Gal | 11.5 |
| Ouput Capacity per Hour Running One Side Gal | 8.5 |
| Cooling | Water |
| Compressor (Btu/hr) | 12000 |
| Number of Drive Motors | 2 |
| Drive Motor (Hp) | 3/4 |
| Number of Hoppers | 2 |
| Number of Freezing Cylinders | 2 |
| Freezing Cylinder Refrigerant | R448A |
| Plumbing Fittings | Units require 1/2 inch N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM. Ideal EWT of 50°-70°F |
| Hopper Capacity Gal | 3 |
| Hopper Capacity | 11.36 Lt. |
| Total Hopper Capacity Gal | 6 |
| Total Hopper Capacity | 22.71 Lt. |
| Freezing Cylinder Capacity Gal | 0.85 |
| Freezing Cylinder Capacity | 3.22 Lt. |
| Height | 58.25 inch |
| Width | 19.25 inch |
| Depth | 28 inch |
Stoelting
by
Stoelting
Model Number: CS-AXOM-F231X-114I2

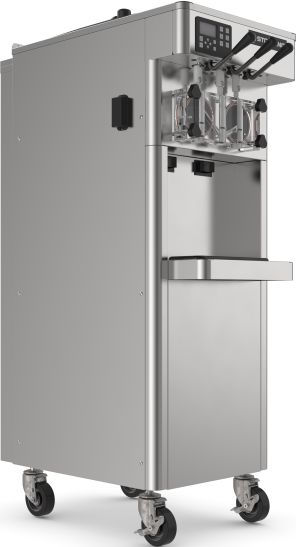

Stoelting - 19.25" x 28" x 58.25" 380-415 V Water Cooled Gravity-Fed Twin Twist Soft Serve Floor Machine - F231X-114I2 (Pre-Order Now, ETA 8-12 Weeks)
Couldn't load pickup availability
Buy With Confidence
Contact us if an order needs to be returned and we’ll make it right!
Found a Better Price?
Let us know and we’ll beat it (some exceptions apply).
Multiple Payment Methods
Accepts Visa, Mastercard, PayPal, EFT, cheque, and wire transfer.
| Weight | 400 Ib |
| Frequency (Hz) | 50 |
| Phase | 3 |
| Plug | Plug not included |
| Plug Connection | Yes |
| Running Amps | 12 |
| Voltage | 380-415 |
| Ouput Capacity per Hour Running Both Sides Gal | 11.5 |
| Ouput Capacity per Hour Running One Side Gal | 8.5 |
| Cooling | Water |
| Compressor (Btu/hr) | 12000 |
| Number of Drive Motors | 2 |
| Drive Motor (Hp) | 3/4 |
| Number of Hoppers | 2 |
| Number of Freezing Cylinders | 2 |
| Freezing Cylinder Refrigerant | R448A |
| Plumbing Fittings | Units require 1/2 inch N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM. Ideal EWT of 50°-70°F |
| Hopper Capacity Gal | 3 |
| Hopper Capacity | 11.36 Lt. |
| Total Hopper Capacity Gal | 6 |
| Total Hopper Capacity | 22.71 Lt. |
| Freezing Cylinder Capacity Gal | 0.85 |
| Freezing Cylinder Capacity | 3.22 Lt. |
| Height | 58.25 inch |
| Width | 19.25 inch |
| Depth | 28 inch |
