About Product

Description

Keep your cool—even when the temperature’s high—with the is a durable, heavy-duty solution for transporting packages, supplies, and equipment.

Key highlights:

  • 208- to 240-volt,Air-cooled, 1-phase model with two 5 ½-gallon-mix containers that dispense two flavors or a twist of both
  • Maintains high production in high-temperature conditions
  • Reliable, easy to use, low-maintenance and whisper quiet
  • Slim, compact design with a small footprint saves valuable floor space
  • Intellitec2® control communicates with the operator through a multiline graphics LCD display using full text instructions
  • Mix pumps inject precise amounts of air into your mix to maintain consistent overrun, ensuring maximum profitability with clean-in-place simplicity
  • Energy Conservation Mode (ECM) protects product from over agitation during slow or nondraw periods
  • Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
  • Standard, divided and separated dipper well helps prevent cross contamination between flavors for food allergy concerns
  • Clear door shows moving product for merchandising appeal
Description

Keep your cool—even when the temperature’s high—with the is a durable, heavy-duty solution for transporting packages, supplies, and equipment.

Key highlights:

  • 208- to 240-volt,Air-cooled, 1-phase model with two 5 ½-gallon-mix containers that dispense two flavors or a twist of both
  • Maintains high production in high-temperature conditions
  • Reliable, easy to use, low-maintenance and whisper quiet
  • Slim, compact design with a small footprint saves valuable floor space
  • Intellitec2® control communicates with the operator through a multiline graphics LCD display using full text instructions
  • Mix pumps inject precise amounts of air into your mix to maintain consistent overrun, ensuring maximum profitability with clean-in-place simplicity
  • Energy Conservation Mode (ECM) protects product from over agitation during slow or nondraw periods
  • Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
  • Standard, divided and separated dipper well helps prevent cross contamination between flavors for food allergy concerns
  • Clear door shows moving product for merchandising appeal

Specifications

Weight400 Ib
Frequency (Hz)50
Phase3
PlugPlug not included
Plug ConnectionYes
Running Amps12
Voltage380-415
Ouput Capacity per Hour Running Both Sides Gal11.5
Ouput Capacity per Hour Running One Side Gal8.5
CoolingAir
Compressor (Btu/hr)12000
Number of Drive Motors2
Drive Motor (Hp)3/4
Number of Hoppers2
Number of Freezing Cylinders2
Freezing Cylinder RefrigerantR448A
Air FlowUnits require 3 inch (7.6 cm) air space on both sides
Hopper Capacity Gal3
Hopper Capacity11.36 Lt.
Total Hopper Capacity Gal6
Total Hopper Capacity22.71 Lt.
Freezing Cylinder Capacity Gal0.85
Freezing Cylinder Capacity3.22 Lt.
Height58.25 inch
Width19.25 inch
Depth31.37 inch
Stoelting by Stoelting

Model Number: CS-AXOM-F231X-314I2P      UPC: 671080521978

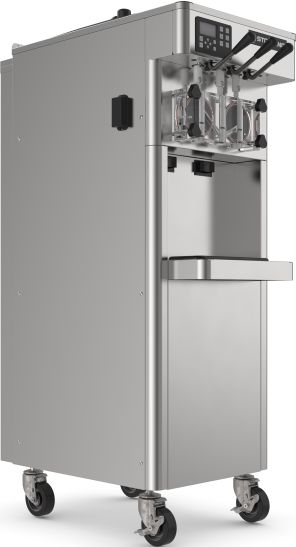

Stoelting - 19.25" x 31.37" x 58.25" 380-415 V Air Cooled Double Barrel Frozen Custard And Italian Ice Continuous Freezer - F231X-314I2P (Pre-Order Now, ETA 8-12 Weeks)



We sell kitchen supplies only in bulk quantities, primarily for Federal Government contracts.

Buy With Confidence
Contact us if an order needs to be returned and we’ll make it right!
Found a Better Price?
Let us know and we’ll beat it (some exceptions apply).
Multiple Payment Methods
Accepts Visa, Mastercard, PayPal, EFT, cheque, and wire transfer.

Weight400 Ib
Frequency (Hz)50
Phase3
PlugPlug not included
Plug ConnectionYes
Running Amps12
Voltage380-415
Ouput Capacity per Hour Running Both Sides Gal11.5
Ouput Capacity per Hour Running One Side Gal8.5
CoolingAir
Compressor (Btu/hr)12000
Number of Drive Motors2
Drive Motor (Hp)3/4
Number of Hoppers2
Number of Freezing Cylinders2
Freezing Cylinder RefrigerantR448A
Air FlowUnits require 3 inch (7.6 cm) air space on both sides
Hopper Capacity Gal3
Hopper Capacity11.36 Lt.
Total Hopper Capacity Gal6
Total Hopper Capacity22.71 Lt.
Freezing Cylinder Capacity Gal0.85
Freezing Cylinder Capacity3.22 Lt.
Height58.25 inch
Width19.25 inch
Depth31.37 inch
