About Product
Description
Serve up rich, frozen custard, or quickly switch is a durable, heavy-duty solution for transporting packages, supplies, and equipment.
Key highlights:
- 208- to 240-volt, air-cooled, 1-phase dipping cabinet with two compartments and a refrigerated condiment rail
- Precise, consistent dipping temperature, thanks to digital temperature control
- Container storage compartment holds two 4 ¼-gallon (16-liter) square buckets, ideal for scooping
- Removable cabinet covers allow easy access to the product
- Custom-built for use with continuous-flow frozen custard and Italian ice machines
- Heavy-duty swivel casters allow you to quickly move the cabinet
- Easy installation, cleaning and maintenance
- Low-environmental-impact, nontoxic refrigerant delivers excellent thermodynamic performance with zero Ozone Depletion Potential (ODP) and very low Global Warming Potential (GWP)
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Thoroughly mixes variegates and particulates, unlike horizontal barrels
Description
Serve up rich, frozen custard, or quickly switch is a durable, heavy-duty solution for transporting packages, supplies, and equipment.
Key highlights:
- 208- to 240-volt, air-cooled, 1-phase dipping cabinet with two compartments and a refrigerated condiment rail
- Precise, consistent dipping temperature, thanks to digital temperature control
- Container storage compartment holds two 4 ¼-gallon (16-liter) square buckets, ideal for scooping
- Removable cabinet covers allow easy access to the product
- Custom-built for use with continuous-flow frozen custard and Italian ice machines
- Heavy-duty swivel casters allow you to quickly move the cabinet
- Easy installation, cleaning and maintenance
- Low-environmental-impact, nontoxic refrigerant delivers excellent thermodynamic performance with zero Ozone Depletion Potential (ODP) and very low Global Warming Potential (GWP)
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Thoroughly mixes variegates and particulates, unlike horizontal barrels
Specifications
| Weight | 383.3 Ib |
| Product Condition | New |
| Frequency | 60HZ |
| Hardwired Connection | Yes |
| Maximum Overcurrent Protection Device (Per Barrel) | 15 |
| Minimum Circuit Ampacity (Per Barrel) | 15 |
| Phase | 3 |
| Plug Connection | No |
| Voltage | 208-240 |
| Output Capacity per Hour per Freezing Cylinder (GAL) | 10 |
| Refrigerant | R448A |
| Compressor Capacity (Btu/hr) per Compressor | 6000 |
| Number of Compressors | 2 |
| Cooling | Air |
| Number of Drive Motors | 2 |
| Drive Motor (hp) | 2 |
| Number of Hoppers | 2 |
| Number of Freezing Cylinders | 2 |
| Number of Freezing Cylinders | 2 |
| Air Flow\t|| Self contained Units require 6 inch (15.2 cm) air space on sides and 24 inch (60.9 cm) at the back. They are charged with R-404A. | |
| Hopper Capacity (L) | 5.4 |
| Hopper Capacity (L) | 20.44 |
| Total Hopper Capacity (GAL) | 10.8 |
| Total Hopper Capacity (L)\t|| 40.88 | |
| Freezing Cylinder Capacity (GAL) | 0.9 |
| Freezing Cylinder Capacity (L)\t|| 3.41 | |
| Width | 27.5 inch |
| Depth | 40.37 inch |
| Height | 59 inch |
Stoelting
by
Stoelting
Model Number: CS-AXOM-M202-309B0FSIR

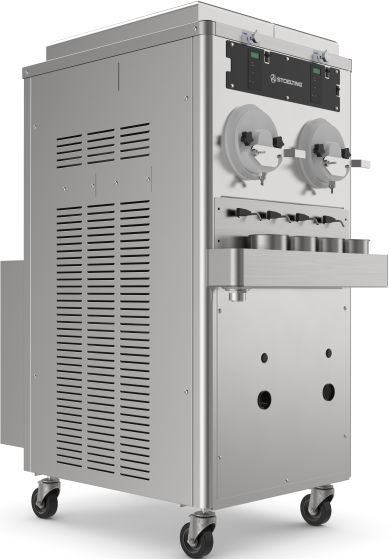

Stoelting - 208-240V 1-Phase Air-Cooled 3-Phase Double Barrel Continuous Flow Frozen Custard And Italian Ice Machine - M202-309B0FSIR (Pre-Order Now, ETA 8-12 Weeks)
