About Product
Description

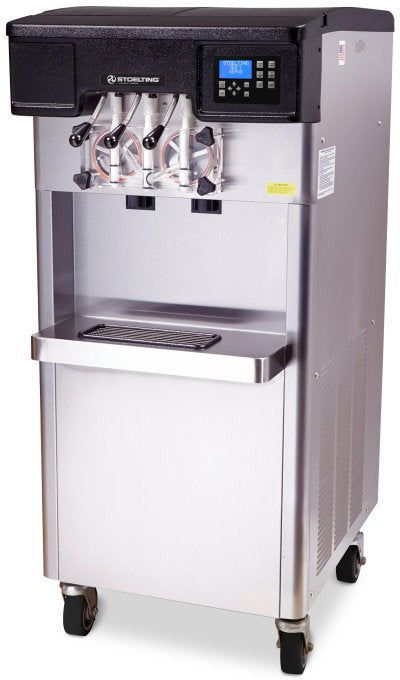

Gravity Soft Serve/Yogurt Freezer dispenses two single flavors, is a durable, heavy-duty solution for transporting packages, supplies, and equipment. Ideal for use in twist.
Key highlights:
- Precision controlled refrigeration system built for quality product consistency from the first cone to the last
- Powerful IntelliTec3 control communicates with the operator through a multiline graphics LCD display using full text instructions, providing additional operator information with enhanced service diagnostic capability
- Energy Conservation Mode (ECM) protects product from over-agitation during slow or non-draw periods
- Compact design with a small footprint saves valuable floor space
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Clear door shows visible moving product for merchandising appeal
- Self-closing spigot eliminates waste and Offers precise portion control
- Long-wearing parts offer low preventative maintenance costs
- Built for ease of operation and cleaning
- Twist feature allows you to serve two flavors individually or combine flavors for a unique twist
Description
Gravity Soft Serve/Yogurt Freezer dispenses two single flavors, is a durable, heavy-duty solution for transporting packages, supplies, and equipment. Ideal for use in twist.
Key highlights:
- Precision controlled refrigeration system built for quality product consistency from the first cone to the last
- Powerful IntelliTec3 control communicates with the operator through a multiline graphics LCD display using full text instructions, providing additional operator information with enhanced service diagnostic capability
- Energy Conservation Mode (ECM) protects product from over-agitation during slow or non-draw periods
- Compact design with a small footprint saves valuable floor space
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Clear door shows visible moving product for merchandising appeal
- Self-closing spigot eliminates waste and Offers precise portion control
- Long-wearing parts offer low preventative maintenance costs
- Built for ease of operation and cleaning
- Twist feature allows you to serve two flavors individually or combine flavors for a unique twist
Specifications
| Weight | 640 Ib |
| Frequency (Hz) | 60 |
| Phase | 3 |
| Plug | NEMA L15-20P |
| Plug Connection | Yes |
| Running Amps | 11.52 |
| Voltage | 208-230 |
| Ouput Capacity per Hour Running Both Sides Gal | 11.5 |
| Ouput Capacity per Hour Running One Side Gal | 8.5 |
| Cooling | Air |
| Compressor (Btu/hr) | 1300 |
| Number of Drive Motors | 2 |
| Drive Motor (Hp) | 3/4 |
| Number of Hoppers | 2 |
| Number of Freezing Cylinders | 2 |
| Number of Freezing Cylinder Compressors | 1 |
| Freezing Cylinder Compressor (Btu/hr) | 12000 |
| Freezing Cylinder Refrigerant | R448A |
| Air Flow | Units require 3 inch (7.6 cm) air space on both sides |
| Hopper Capacity Gal | 5 |
| Hopper Capacity | 18.93 Lt. |
| Total Hopper Capacity Gal | 10 |
| Total Hopper Capacity | 37.85 Lt. |
| Freezing Cylinder Capacity Gal | 0.85 |
| Freezing Cylinder Capacity | 3.22 Lt. |
| Height | 57.75 inch |
| Width | 25.62 inch |
| Depth | 33.75 inch |
Stoelting
by
Stoelting
Model Number: CS-AXOM-F231-309I3-2X
Stoelting - 25.62" x 33.75" x 57.75" 208-230 V Gravity Fed Twin Twist Floor Model with Large Capacity Hopper - F231-309I3-2X (Pre-Order Now, ETA 8-12 Weeks)
