About Product
Description
Introducing your newest as well as hardest working is a durable, heavy-duty solution for transporting packages, supplies, and equipment.
Key highlights:
- 208- to 240-volt 3-phase air-cooled model with two 3-gallon hoppers that dispense two single flavors or combine them in a twist
- Precision-controlled refrigeration system built for quality product consistency from the first order to the last
- Intellitec2® control communicates with the operator through a multiline graphics LCD display using full-text instructions
- Energy Conservation Mode (ECM) protects product from over agitation during slow or nondraw periods
- Compact design with a small footprint saves valuable floor space
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Refrigerated hopper with independent refrigeration system maintains safe storage temperatures in any environment
- Robust compressor reduces freeze-down times and promotes efficient operation
Description
Introducing your newest as well as hardest working is a durable, heavy-duty solution for transporting packages, supplies, and equipment.
Key highlights:
- 208- to 240-volt 3-phase air-cooled model with two 3-gallon hoppers that dispense two single flavors or combine them in a twist
- Precision-controlled refrigeration system built for quality product consistency from the first order to the last
- Intellitec2® control communicates with the operator through a multiline graphics LCD display using full-text instructions
- Energy Conservation Mode (ECM) protects product from over agitation during slow or nondraw periods
- Compact design with a small footprint saves valuable floor space
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Refrigerated hopper with independent refrigeration system maintains safe storage temperatures in any environment
- Robust compressor reduces freeze-down times and promotes efficient operation
Specifications
| Weight | 640 Ib |
| Frequency (Hz) | 60 |
| Phase | 3 |
| Plug | NEMA L15-20P |
| Plug Connection | Yes |
| Running Amps | 11.52 |
| Voltage | 208-240 |
| Ouput Capacity per Hour Running Both Sides Gal | 11.5 |
| Ouput Capacity per Hour Running One Side Gal | 8.5 |
| Cooling | Water |
| Compressor (Btu/hr) | 1300 |
| Number of Drive Motors | 2 |
| Drive Motor (Hp) | 3/4 |
| Number of Hoppers | 2 |
| Number of Freezing Cylinders | 2 |
| Number of Freezing Cylinder Compressors | 1 |
| Freezing Cylinder Compressor (Btu/hr) | 12000 |
| Plumbing Fittings\t | Units require 1/2 inch N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM. Ideal EWT of 50°-70°F |
| Hopper Capacity Gal | 5 |
| Hopper Capacity | 18.13 Lt. |
| Total Hopper Capacity Gal | 10 |
| Total Hopper Capacity | 37.85 Lt. |
| Freezing Cylinder Capacity Gal | 0.85 |
| Freezing Cylinder Capacity | 3.22 Lt. |
| Height | 57.75 inch |
| Width | 25.62 inch |
| Depth | 33.75 inch |
Stoelting
by
Stoelting
Model Number: CS-AXOM-F231-109I3-2X

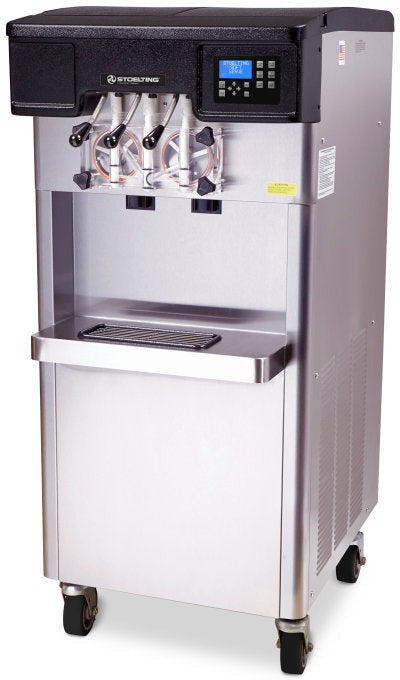

Stoelting - 25.62" x 33.75" x 57.75" 208-240 V Water Cooled Gravity Fed Twin Twist Soft Serve Floor Machine - F231-109I3-2X (Pre-Order Now, ETA 8-12 Weeks)
